TECHNICAL SPECIFICATIONS
• Maximum working over-pressure 5,0 bars
• Maximum design over-pressure 5.5 bars
• Test over-pressure 8.25 bars
• Main chamber capacity 2 persons
• Inner diameter of chamber 1200mm
• Length of chamber 2150 mm
• Chamber volume 1800It
• Width overall (incl. control station) 1200 mm
• Height overall (incl. lamps) 1850 mm
• Number of doors (hatchs) 1 pes

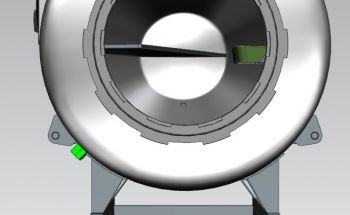

• Circular door free diameter 660 mm
• Number of observation windows in main chamber (MC) 2 each
• Observation Window-diameter free 160 mm
• Supply lock main chamber (MC) free diameter 200 mm
free length 350 mm

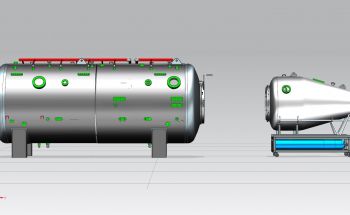

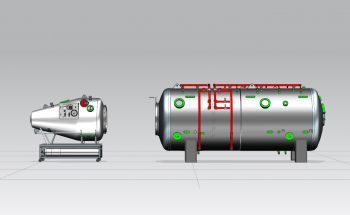

• Flange STANAG Male
• Supervisor authority (pressure vessel according to AD) TUV or BV
